SUV Of The Day: January 10, 2012

Today's car of the day is Racing Champions' 1983 Chevrolet Blazer.

The K5 Blazer was the smallest full size SUV version of the General Motors C/K Trucks family. Introduced to the Chevrolet line in 1969, the full-size Blazer was replaced in 1995 by the Chevrolet Tahoe. In 1970, GMC introduced its own model of the truck, called the Jimmy, which lasted until the 1992 GMC Yukon. Both were based on the short wheelbase trucks and were available with either rear-wheel drive or four-wheel drive. The Blazer's long wheelbase relative (with an integrated rear body, and doors for 2nd row passengers) is known as the Chevrolet Suburban.

The K5 Blazer and Jimmy had "full convertible" removable tops until 1975. In 1976, GM introduced a half-cab design that was less prone to leaks and slightly safer in a roll-over. These half cabs are convertible starting at a few inches behind the driver/passenger doors all the way back to the tailgate. In 1992, the Blazer was redesigned completely and no longer had a removable top.

Smaller models, the S-10 Blazer and S-15 Jimmy, were introduced alongside these trucks in 1983. The original Blazer and Jimmy remained in production until 1991; 1992 saw the introduction of a new K1500 Blazer (and the rebadged GMC Yukon) on the GMT400 platform. After 1994, the Blazer was renamed the Chevrolet Tahoe and it was offered in a two-door model up until 1999. After that it was offered only with four passenger doors.

For more information and pictures of the real car please visit: Chevrolet Blazer

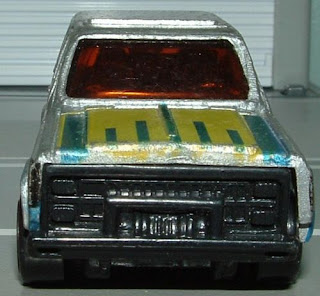

This is a recent purchase from Pegers (thanks Dan!).  If the rear bumper looks familiar...it should.  The casting is either a very good copy of the original Kenner Fast 111s or somehow Racing Champions acquired the mold from Hasbro at some point.  I doubt the latter since all of the Fast 111s tooling went to Matchbox, and this particular model became the Chevrolet Blazer 4x4 that has been in the ranger ever since.  The Mustang Cobra, dune buggy, and Jeep also transitioned to the Matchbox line.  I'm not sure how many others became Racing Champions- can anyone shed some light on this one?

In 1973, GM's line of full-size trucks was redesigned and updated. A tilt-steering wheel became optional. Although rear-wheel drive Blazers were manufactured until 1982, the majority sold were four-wheel drive.
Until 1975, the K5 had a removable convertible top. In 1976, a half-cab design was introduced and used until 1991.

Although the GMT400 platform was introduced in the spring of 1987 as a 1988 model, the K5 Blazer, Suburban, and crew-cab trucks retained the earlier platform until 1991. In 1989, the front grille was changed to resemble the squared-off ones used on the GMT400 series of pickups.

The K5 Blazer is very popular in the off-roading scene. It is a strong truck with the 350 V8 (which was the optional power plant), the gear driven NP-205 and 10- and 12-bolt axles. It is very easy to upgrade this engine, because there are many companies with performance parts available. Later models produced after 1980 used the chain-driven NP208 transfer case, and the NP241 after 1988.

The second generation K5 models incorporated the rear hatch glass and tailgate into a single unit, which allowed the glass panel to retract inside of the tailgate by use of a manual crank mounted on the tailgate or an electric motor activated by a key-operated switch on the tailgate and a dash-mounted switch. The weight of the large glass panel proved to be a liability, as the manual crank gears wore prematurely, and the electric motor was prone to frequent overheating and subsequent failure. Another issue with the tailgate/rear hatch design of the K5 Blazer was the safety switch, which prevented the rear window from being raised if the tailgate was lowered. The third generation model returned to the separate glass hatch/tailgate design that was originally in the first generation model. In 1976, the Delco Freedom battery became an option.

Since 1981 (in the wake of the 1973 Arab Oil Embargo and the 1979 energy crisis), Chevrolet and GMC used the smaller displacement 305s with a 9.2:1 compression ratio. These engines produced nearly as much torque as the 350, giving a similar driving feel. However, these power plants were underpowered and prone to detonation (engine knocking), especially with the electronic spark control module. To achieve the 9.2:1 compression ratio, the cylinder head chambers were bigger, measuring 76 cc instead of 64 cc. Despite a camshaft swap, some Blazer owners swapped out the 305s in favor of 350s, since the smaller displacement power plant was used in all Chevrolet/GMC pickups and passenger cars. 1982 saw the Detroit Diesel 6.2 introduced.

Around 1981, a prototype K5 Blazer was used as a testbed for a military CUCV vehicle. Between 1983 and 1987, what is known as the M1009 CUCV was the production militarized version of the civilian K5. The differences are the lack of an air conditioner, an additional leaf spring in the suspension, a hybrid 12/24 V electrical system (described in detail below), blackout headlights, a rifle rack, and special paint jobs. A majority of them are painted olive drab green or in the woodland camouflage pattern, though some vehicles that saw desert use were painted tan. All M1009s, including its derivatives, are powered with the 6.2 L Diesel power plant.

The M1009s have a split 24/12 V electrical system. Most of the truck actually runs on 12 V. It has two separate 12 V alternators and batteries wired in series, only the glow plug system, the starter, and the jumper cable jack are wired to the 24 V terminals. everything else in the truck runs on 12 V. The glow plugs are actually 12 V glow plugs with a resistor pack on the firewall to drop the 24 V down to 12 V. This resistor pack can be bypassed and the glow plugs run directly off of the 12 V battery. If this is done and the 24 V starter is replaced with a standard 12v starter the second alternator and battery are no longer needed. (If this is done then the military 24 V slave adapter in the grille will need to be disconnected as well.)
Some decommissioned M1009s end up in law enforcement use (e.g. with the Los Angeles County Sheriff's Department) or sold through government auctions, but a handful are still in use by the National Guard.
After 1987, when throttle-body injection was introduced in the truck engines, the 350 was made the standard power plant.

GM temporarily changed the usual "C/K" designation to "R" and "V" for the 1987 through 1991 model years. This was done to avoid confusion with the GMT400-based Chevrolet C/K pickup trucks, which were introduced in 1988, during the overlap period.

In 1988, four new colors were introduced: Bright Blue Metallic, Forest Green Metallic, Light Mesa Brown Metallic, and Dark Mesa Brown Metallic. More new features for 1988 included a fixed mast antenna in place of the old windshield antenna, a trip odometer as part of the gauge package cluster, and an improved pulse windshield wiper control. Also, helping to reduce air leaks in the doors was a new door handle seal.
The 1989 Blazer had new base and up-level grilles, as well as new headlight bezels, body side moldings, and bumper rub strips. Corporate 10-bolt axles were upgraded to 30 spline axle shafts from previous 28 spline. New for 1989 was the introduction of an all-new base coat/clear coat paint. The standard L05 5.7-liter V-8 now had serpentine accessory drive belts in place of the older multi-belt accessory drive.

For the 1990 model year, all Blazers now had a standard rear wheel anti-lock braking system. A new electronic speedometer system, with a 6 digit odometer on the dashboard was also introduced for 1990, along with non-asbestos brake linings. A new brake warning light on the dashboard was also introduced for 1990. The Blazer body also used double sided, galvanized exterior sheet metal. A new option for 1990 was power mirrors. The 5.7-liter V-8 (L05) engine was improved for 1990 with the addition of improved oil control rings, a redesigned rear crankshaft seal, a new camshaft sprocket design, non-asbestos intake manifold gaskets, and heavy-duty intake valves.

And for 1991, the 700R4 was renamed to 4L60. The TBI (throttle body injection) system used on the Blazer's standard 5.7-liter V-8 had longer throttle shaft bearings, new throttle return springs, and improved fuel mixture distribution. The 5.7-liter V-8 also had new heavy-duty intake valves and powdered metal camshaft sprockets. Standard on all engines was a lighter more powerful 100-amp CS130 alternator. Two new exterior colors, Brilliant Blue and Slate Metallic were offered.
